Blind Holes & Fasteners Guide

Introduction

In precision engineering, every feature of a component serves a purpose—none more subtly yet crucially than the blind hole. A blind hole is defined as a hole drilled or machined into a workpiece that does not penetrate completely through the material.

While this may seem like a minor design element, blind holes play a pivotal role in optimizing component strength, aesthetics, and functionality.

Blind holes are integral to countless industries including aerospace, automotive, electronics, construction, and industrial machinery, enabling secure fastenings, preserving surface integrity, and supporting confined-space assemblies.

Types of Holes in Engineering

Understanding the types of holes used in manufacturing is essential for proper design and assembly.

  • Blind Hole: Terminates at a specific depth within the workpiece.

  • Through Hole: Extends completely through the material.

Other common variations include:

  • Countersink: Tapered opening for flush screw heads

  • Counterbore: Flat-bottomed recess to seat bolt heads

  • Spotface: Machined surface for bolt seating

  • Tapered Hole: Conical shape for press fits or tapered fasteners

  • Reamed Hole: Finely machined for tight tolerance fits

Characteristics and Design Considerations of Blind Holes

CharacteristicDescription
DepthShould match thread engagement or fastener length, considering tap chamfers
DiameterMust align with drill and tap specifications
Surface IntegrityMaintains exterior surface finish and appearance
AccessibilityLimited access complicates chip removal and inspection
Tolerance & FinishVital for tight fits, sealing surfaces, or stress distribution

Design Tips:

  • Include extra depth for chip accumulation beyond the threaded portion.

  • Avoid intersecting features that could weaken the wall or cause tool deflection.

  • For tapped holes, ensure thread depth accounts for chamfer loss and usable thread length.

 Machining Processes for Blind Holes

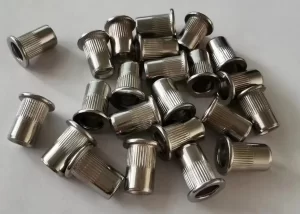

Fasteners

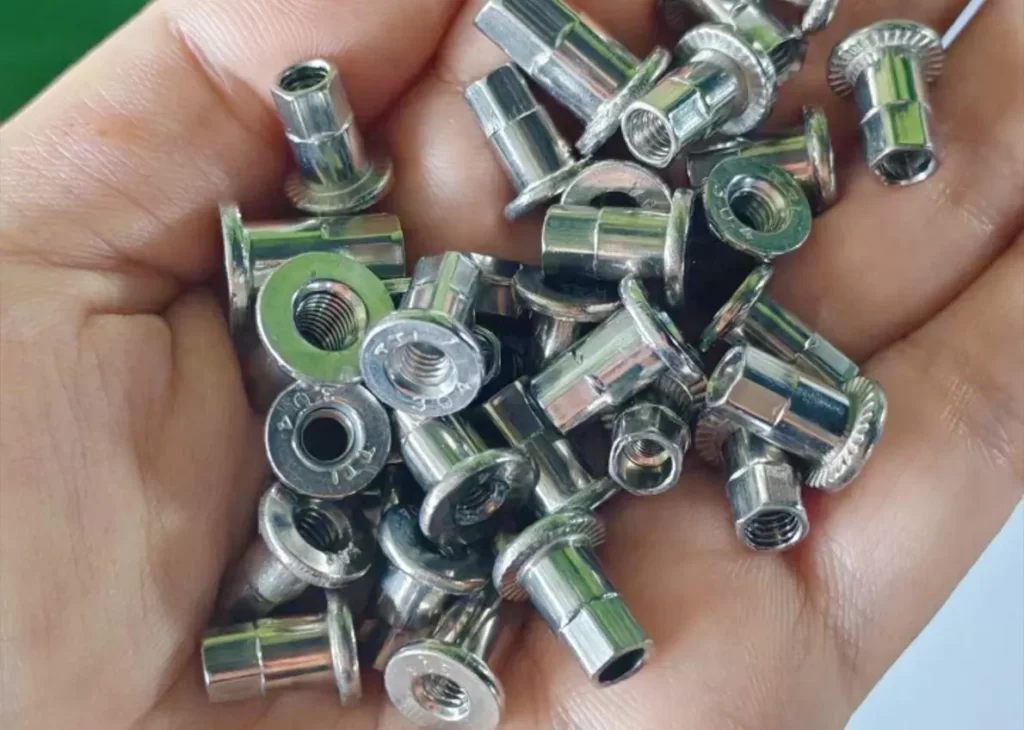

Fasteners

a. Drilling Techniques

  • Hand Drills: Use for low-precision applications; mark depth with tape or depth collars.

  • Drill Presses: Offer better alignment, depth control, and repeatability.

  • CNC Machines / Lathes: Essential for precise and repeatable hole depths in complex geometries.

Chip Removal is critical:

  • Use cutting fluids to reduce heat and friction.

  • Retract frequently to clear chips, especially in deep or narrow holes.

b. Reaming & Finishing

After drilling, reaming enhances hole dimensional accuracy and surface finish. It is especially important for press-fit fasteners or when tight tolerances are specified.

Tapping and Threading Blind Holes

Tap Selection

  • Spiral Flute Taps: Ideal for blind holes; evacuate chips back out of the hole.

  • Bottoming Taps: Cut threads close to the hole bottom—necessary for maximizing thread engagement.

  • Roll Taps (Form Taps): Produce threads by deformation, not cutting—generate no chips and reduce clogging.

Drill Bit Sizing

Ensure proper pilot hole diameter (e.g., M10 × 1.5 → Ø8.8 mm drill).

Thread Depth Formula:

Thread Depth = Thread Length + (Thread Pitch × 9)
This accounts for lead-in threads and complete engagement.

Chip Management:

  • Clean regularly during tapping cycles.

  • Inspect taps for wear or chip build-up.

 Fasteners Suitable for Blind Holes

a. Standard Blind Rivets (e.g., ALFO Type)

  • Features: Expand inside the hole; grooved shafts ensure grip.

  • Applications: High-retention assemblies with access from one side only.

Installation Guidelines:

  • Experiment to determine proper drill size.

  • Rivet length should exceed part thickness and accommodate mandrel head.

  • Validate pull-out resistance through testing.

b. Hammer Drive Blind Rivets

  • Installation: Set by hammer impact; no special tool required.

  • Material Compatibility: Usable with steel, aluminum, and plastics.

  • Applications: Building cladding, enclosures, sheet metal frames.

Tip: Trial fitting is essential to determine suitable length and hole tightness.

Blind Hole Symbol and Technical Callouts

In engineering drawings, blind holes are depicted using a circle with a partial centerline and depth arrow. Example:

M6 x 1 ↧12 / 16

  • Thread: M6 x 1

  • Thread Depth: 12 mm

  • Total Hole Depth: 16 mm

This ensures machinists and quality inspectors understand both the usable thread and full drill depth.

 Cleaning and Inspection of Blind Holes

Debris Removal Methods

  • During Machining:

    • High-pressure coolant

    • Peck drilling with fluid flush

  • Post-Drilling:

    • Compressed air

    • Vacuum nozzles

    • Nylon brushes for manual cleaning

Inspection Tools

  • Depth Gauges and Dial Indicators for depth validation

  • Borescopes and optical probes for visual inspection

  • Non-destructive methods for critical or internal holes

 Applications of Blind Holes

  • Mechanical Fastening: Concealed bolt or rivet heads for aesthetic or clearance reasons

  • Hydraulic Systems: Blind cavities serve as fluid pockets or manifold features

  • Aesthetic Parts: Prevent visible holes on outer surfaces

  • Structural Joints: Enable load-bearing fastening without compromising through-part integrity

Blind Holes vs. Through Holes: Summary Comparison

AspectBlind HoleThrough Hole
DepthPartialFull material thickness
Tapping ToolsSpiral flute, bottoming tapsTaper taps, spiral point taps
Chip EvacuationChallengingEasier due to exit path
AppearanceConcealed fastenersFasteners exposed on both sides
Structural UseControlled load distributionIdeal for bolted joints and high loads

Common Challenges in Blind Hole Machining

  • Chip Clogging: Leads to tap binding or drill breakage

  • Depth Overrun: May puncture through thin sections

  • Access Limitations: Complicated in complex or multi-sided parts

  • Tool Breakage: Common if retraction or lubrication is neglected

Best Practices & Engineering Tips

  • Use CNC or drill presses for accurate control

  • Mark drill depth using collars, stops, or indicators

  • Always apply lubricants to reduce friction

  • Pre-drill pilot holes for large-diameter holes

  • Verify both depth and cleanliness before tapping or assembly

  • Clean thoroughly to prevent fastener issues or corrosion

Conclusion

Blind holes are foundational to precision component design across numerous industries. Their ability to enable concealed fastening, conserve material strength, and enhance aesthetics makes them indispensable in high-performance assemblies.

However, successfully machining and fastening blind holes demands careful planning, tool selection, and methodical execution.

Selecting suitable fasteners like grooved blind rivets or hammer-drive types, and following best practices, ensures secure, long-lasting assemblies.

Whether you’re designing lightweight aerospace structures or high-volume industrial parts, mastering blind hole strategies is a critical step toward manufacturing excellence.
