In today’s precision-driven manufacturing landscape, where tolerances are tighter and component performance often hinges on microscopic variances, reamers play a crucial but sometimes underappreciated role. These multi-edge rotary cutting tools are engineered not to create holes, but to perfect them—delivering dimensional accuracy, fine surface finishes, and geometric precision that other tools alone cannot achieve.
Whether you’re involved in aerospace component machining, automotive engine block assembly, or custom tool and die making, understanding reamer selection and application can significantly enhance product quality and operational efficiency.

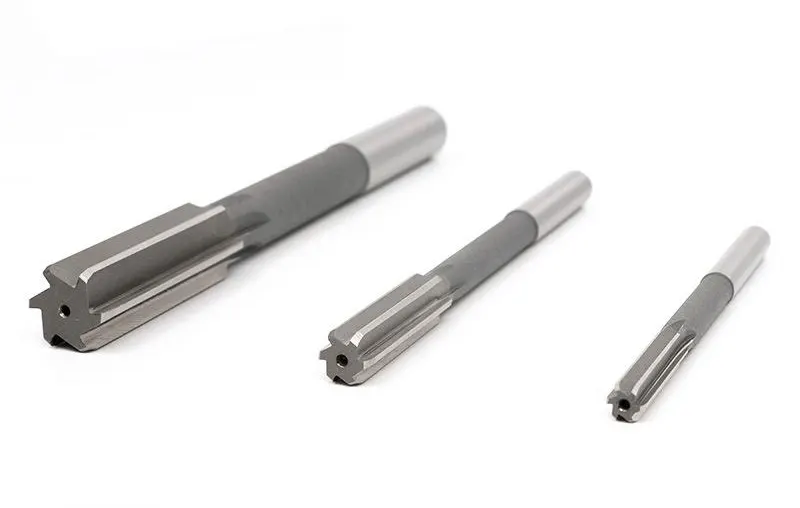

Introduction to Reamers
A reamer is a rotary cutting tool used to precisely enlarge and finish pre-drilled, bored, or cast holes. Unlike drills, reamers do not generate a hole from scratch; they instead refine an existing hole to meet stringent size and finish specifications.
Primary Purpose
Reamers are essential when a high level of hole accuracy and a smooth surface finish are required. They correct minor irregularities left by drilling or boring, producing tight-tolerance holes with finishes often better than Ra 1.6 µm (63 µin).
Applications
Reamers are integral across many high-precision industries:
Aerospace: For tight-tolerance fastener holes in airframes.
Automotive: Used in cylinder blocks, connecting rods, and fuel system components.
Toolmaking: For precision jigs and fixtures.
Manufacturing & Assembly: Ensures reliable mating of components.
Welding Preparation: Prepares holes with exact fit for plug or socket welds.
Limitations
While reamers are highly effective at finishing, they cannot be used to initiate a hole. A pre-existing hole, often drilled slightly undersized, is a prerequisite for reaming.
Classification of Reamers
Understanding the various types of reamers—based on application method, structural features, and geometric configuration—enables optimal tool selection for a given operation.
Based on Application Method
Hand Reamers
Hand reamers are manually operated with a tap wrench and have a long lead taper. This gradual entry ensures easier alignment and smoother operation in less rigid setups, ideal for low-volume or maintenance tasks.
Use Case: Repair shops or fine adjustment of holes in assemblies.
Machine Reamers (Chucking Reamers)
Designed for use with powered equipment like drill presses, lathes, or machining centers, machine reamers offer higher consistency and productivity. They have a shorter lead taper and tighter tolerances suitable for mass production.
Use Case: High-volume manufacturing environments.
Based on Structural Features
Fixed Diameter Reamers
These are the most common type, machined to a precise diameter. They are ideal for repeatable tasks requiring high dimensional consistency.
Use Case: Production of standardized holes across large batches.
Adjustable Reamers
Comprising blades that can be expanded and contracted within a limited range, adjustable reamers are versatile and useful for custom-fit or slightly worn holes. However, they typically lack the rigidity and precision of fixed types.
Use Case: Field repair and reconditioning work.
Combination Reamers
These specialized tools incorporate multiple cutting diameters along a single axis, allowing for simultaneous or staged hole finishing.
Use Case: Precision assemblies requiring concentric stepped holes.
Based on Geometry
Straight Fluted Reamers
Featuring parallel cutting edges, straight fluted reamers are best suited for soft materials (e.g., brass, aluminum) and through-holes where chips can exit freely.
Pros: Simple, cost-effective design.
Cons: Poor chip evacuation in blind holes.
Spiral Fluted Reamers
Helically oriented flutes offer better chip evacuation, making them suitable for harder materials (e.g., steels, alloys) and blind holes. The spiral also reduces chatter and improves surface finish.
Pros: Superior chip control and finish.
Cons: Directional considerations—right-hand spiral with right-hand cut pushes chips backward.
Tapered Reamers
These tools create conical holes, such as Morse taper or taper pin holes, used for self-locking joints and alignment applications. The taper angle varies based on specific standards.
Use Case: Machine tool spindles, alignment pins, and custom fixtures.
Construction and Design Features
Reamer performance hinges on key design elements that affect tool efficiency, surface finish, and longevity. Engineers must understand how these features interact with different materials and machining conditions.
Cutting Edges
Reamers are constructed with multiple cutting edges, either straight or helical in orientation.
Straight edges provide consistent diameter control and are effective for soft materials and through-holes where chip evacuation is not a concern.
Helical (spiral) edges improve chip removal, reduce chatter, and enhance surface quality, especially in harder materials or blind hole applications.
The number and geometry of cutting edges directly impact feed rates, surface roughness, and tool life.
Chamfer / Taper Lead
The lead (or chamfer) is a tapered section at the front of the reamer that facilitates gradual entry into the hole, aligning the tool and minimizing deflection.
Hand reamers feature a longer taper lead to compensate for manual feed inconsistency and misalignment.
Machine reamers have a shorter lead to maintain control and minimize material engagement in automated setups.
Shank Types
The design of the reamer’s shank varies depending on the application and driving mechanism:
For machine tools: Shanks may be tapered (e.g., Morse), round (used with collets), or have flats for set screws to prevent slippage in rotary holders.
For hand tools: Typically feature a square drive, allowing engagement with a tap wrench for manual turning.
Spiral Direction
The spiral orientation of flutes plays a vital role in chip management:
Left-hand spiral, right-hand cut: Preferred for blind holes, this configuration pushes chips back out of the hole, preventing clogging.
Right-hand spiral: Suited for through-holes, it pulls chips forward and out with the feed direction, improving evacuation and finish.
Choosing the correct spiral direction is essential to avoid chip packing and tool failure.
Material Requirements
Reamer materials must withstand high contact stresses, heat, and abrasion. Common material choices include:
High-Speed Steel (HSS): Offers a good balance of toughness and edge retention; ideal for general-purpose reaming.
Carbide: Exceptionally hard and wear-resistant; suitable for high-speed, high-volume production and hard materials.
Cobalt Alloys: Enhanced heat resistance; used in aerospace and other demanding applications.
Material selection should align with the workpiece material, expected tool life, and cost-performance tradeoffs.
Types of Reamers and Their Uses
Each type of reamer is designed for specific geometries, materials, and operational constraints. Here’s a breakdown of key types and their typical applications:
Chucking Reamers
Description: Most common type of machine reamer, typically used in lathes, mills, or drill presses.
Variants: Available in straight and helical flute designs.
Application: General-purpose precision hole finishing in mass production settings.
Stub Reamers
Description: Short-length reamers designed for maximum rigidity.
Application: Ideal in setups where space is limited or tool deflection must be minimized.
Morse Taper Reamers
Description: Finish Morse taper holes used in machine spindles and tool holders.
Application: Critical in creating and maintaining accurate taper fits for rotational tool holding.
Taper Pin Reamers
Description: Create tapered holes for standard taper pins.
Application: Used in mechanical assemblies for secure, interference-fit pinning.
Jarno Reamers
Description: Match the Jarno taper system, which features a uniform rate of taper per inch.
Application: Precision spindle and toolholder interfaces in older or specialized machinery.
Brown and Sharpe Reamers
Description: Designed to match Brown and Sharpe taper standards.
Application: Common in legacy manufacturing equipment requiring standardized tapers.
Adjustable Hand Reamers
Description: Feature adjustable blades controlled by external nuts.
Application: Suitable for field work or applications requiring light stock removal and custom sizing.
Shell Reamers
Description: Have replaceable cutting heads mounted on arbors.
Application: Cost-effective for reaming large diameters or high-volume production, where tool head replacement is more economical than full tool change.
Die Maker Reamers
Description: Designed with ultra-tight tolerances and high precision.
Application: Used in die sets, punches, and precision molds where exact dimensions are paramount.
Automotive Reamers
Description: Engineered for reaming tough metals such as cast iron and alloy steels.
Application: Employed in critical vehicle systems like suspensions, steering knuckles, and transmission housings.
Welding Equipment Reamers
Description: Compact and robust, used for cleaning and finishing nozzle holes.
Application: Maintenance of MIG welding equipment to prevent spatter buildup and ensure gas flow.
Rose Reamers
Description: Feature no peripheral relief; slightly tapered to self-center and prevent binding.
Application: Employed in rough reaming or pre-finishing operations where tool stability is crucial.
Tapered Reamers (Non-Precision)
Description: Used for deburring or gradually enlarging holes.
Application: Ideal for general maintenance, installation of hardware, or prepping holes for further machining.
Reaming vs. Drilling vs. Other Hole-Making and Finishing Methods
In hole-making, understanding the appropriate technique for the desired outcome is key to optimizing precision, cost, and efficiency. Here’s how reaming compares to other common methods:
Drilling
Function: Initiates the hole by removing a significant volume of material.
Precision: Typically limited to ±0.1 mm or greater.
Surface Finish: Rough, with tool marks and potential for irregular geometry.
Use Case: General-purpose hole creation; not suitable when close tolerances or fine finishes are needed.
Reaming
Function: Secondary finishing operation that removes a small amount of material (typically 0.1–0.3 mm).
Precision: Tolerances as tight as ±0.005 mm achievable.
Surface Finish: Smooth, often better than 0.8 µm Ra.
Use Case: Ideal when a drilled hole requires final sizing, roundness, and superior surface quality.
Boring
Function: Enlarges and trues a hole using a single-point cutting tool, often on a lathe or boring mill.
Flexibility: Offers adjustability and can correct misalignment.
Surface Finish: Inferior to reaming; roughness generally ~1.6 µm or higher.
Use Case: Larger diameter holes, alignment corrections, or when varying diameters are needed.
Honing / Grinding
Function: Superfinishing operations used after reaming for micro-precision.
Precision: Sub-micron tolerances and surface finishes below 0.2 µm Ra.
Use Case: Hydraulic components, aerospace parts, and applications requiring extreme dimensional control.
Process Considerations for Reaming
Several operational factors significantly influence the success of reaming operations:
Input Factors
Workpiece Material: Harder materials require robust, wear-resistant reamers (e.g., carbide).
Reamer Geometry: Flute design, spiral direction, and clearance affect chip evacuation and tool life.
Feed Rate and Speed: Excessive speed can cause chatter and poor finishes; underfeeding may lead to burnishing instead of cutting.
Reversal of Reamer
Strongly discouraged. Running a reamer in reverse can cause chipping of cutting edges, dimensional inaccuracies, and premature tool failure.
Hole Allowance
A properly undersized pre-drilled hole ensures effective reaming.
Typical allowance: 2–4% smaller than the final hole diameter (e.g., for a 10 mm final hole, drill to ~9.6–9.8 mm).
Surface Finish and Dimensional Accuracy
Finish Quality
Reaming delivers surface roughness values as low as 0.8 µm Ra, making it suitable for bearing bores, dowel pin holes, and other precision fits.
Tool Life
With proper setup and lubrication, high-quality reamers can consistently produce up to 30,000 accurate holes before requiring reconditioning or replacement.
Lubrication Effects
Coolant Stream (Flooded): Maintains dimensional accuracy and reduces tool wear.
Semi-Wet (Mist or Light Spray): May result in slight oversizing due to thermal expansion or chip buildup.
Dry Reaming: Leads to poor repeatability, wider tolerance variations, and shorter tool life.
Workholding and Equipment Setup
Achieving optimal reaming results depends not only on the tool but also on stable machine and workpiece setup.
Common Machines
Drill Presses: Suitable for small to medium batch operations.
Lathes: Ideal for concentric reaming with turned parts.
Milling Machines: Useful for accurate hole location and perpendicularity.
CNC Machining Centers: Provide highest repeatability and process control.
Workholding Devices
Vise: For quick clamping of smaller parts.
Fixtures: Offer stability and alignment in high-precision applications.
Collet Chucks: Provide uniform gripping and minimal runout.
Jigs: Ensure repeatability and location control in manual or semi-automatic operations.
Tool Materials
The reamer’s material must match the application’s demands in terms of hardness, wear resistance, and thermal stability.
Heat-Treated Steels
High-Speed Steel (HSS)
Advantages: Cost-effective, easy to sharpen, and widely used.
Best For: General-purpose reaming in low to medium hardness materials.
Cobalt Alloys (e.g., M35, M42)
Advantages: Greater heat and wear resistance than standard HSS.
Best For: Stainless steels, alloy steels, and extended use.
Hard Materials
Tungsten Carbide
Advantages: Exceptional hardness and wear resistance.
Limitations: Brittle; requires rigid setups to prevent chipping.
Best For: High-speed operations and abrasive materials.
CBN (Cubic Boron Nitride) / Diamond
Advantages: Extreme hardness; best for hardened steels and non-ferrous materials.
Limitations: Expensive; used only in specialized, high-value applications.
Best For: Ultra-hard or abrasive materials, including ceramics and composites.
Workpiece Material Considerations
Reaming performance is directly affected by the machinability of the material being processed.
Good Machinability Materials
Aluminum: Easy to cut, excellent surface finish.
Brass and Plastics: Minimal resistance, low tool wear.
Cast Iron: Self-lubricating; good results with minimal lubrication.
Mild Steel: Predictable and uniform cutting characteristics.
Poor Machinability Materials
Stainless Steel: Work-hardens easily; requires rigid tools and high lubrication.
Hardened Steels: Require carbide or CBN tools with optimized feed/speed strategies.
Titanium Alloys and Composites: Prone to tool wear and heat buildup; demand high-performance tooling and cooling.
Lubrication and Coolant Use
Effective lubrication is vital in reaming operations, where the narrow tolerance margins and surface integrity are paramount. The right coolant strategy improves performance, extends tool life, and ensures dimensional consistency.
Functions of Lubricants and Coolants
Temperature Control
Reduces friction-induced heat at the cutting interface.
Maintains consistent tool and workpiece dimensions by minimizing thermal expansion.
Chip Evacuation
Helps flush out chips from the flutes, especially in blind holes.
Prevents chip re-cutting, which can degrade surface finish and damage the tool.
Surface Finish Improvement
Reduces cutting edge wear and galling.
Ensures smoother finishes by minimizing built-up edge and maintaining sharpness.
Types of Coolants
Mineral Oils
Offer excellent lubricity and film strength.
Best suited for low-speed reaming and difficult-to-machine materials.
Synthetic Fluids
Water-free solutions with excellent cooling properties.
Provide clean operation and reduced residue, often used in high-speed CNC applications.
Water-Soluble Coolants
Blend of water and oil additives.
Provide a good balance of cooling and lubrication, making them popular for general-purpose reaming.
Application Methods
Flood Coolant
Most effective for maintaining temperature and flushing chips.
Recommended for high-speed and high-precision operations, especially with carbide tools.
Mist/Spray
Used in semi-wet systems or for materials sensitive to flooding.
Reduces coolant consumption while still offering adequate cooling for light-duty or short-cycle reaming.
Air Blast
Suitable for dry setups or materials that react poorly with liquids.
Primarily aids chip evacuation but offers limited cooling.
Note: The choice of coolant and delivery method should be based on the material, tool type, and desired outcome. Inadequate lubrication can lead to oversizing, premature tool wear, and substandard surface finishes.
Industry Standards
In high-precision manufacturing, compliance with established standards is non-negotiable. Standardization ensures compatibility across tools, machines, and processes, enabling repeatable and scalable production.
Importance of Standards
Dimensional Consistency:
Ensures that reamed holes meet defined tolerance bands, regardless of operator or machine.Tool Interchangeability:
Allows reamers from different manufacturers to be used interchangeably in the same production environment without compromising quality.Quality Assurance:
Facilitates inspections, audits, and certifications by providing a recognized benchmark.
Relevant Standard: ASME B94.2
Scope:
This U.S. standard specifies dimensions, tolerances, and nomenclature for various types of reamers, including hand, machine, and taper reamers.Content Highlights:
Geometry and flute configuration
Shank dimensions
Tolerances for diameter and concentricity
Material and hardness recommendations
Global Relevance:
While ASME B94.2 is primarily used in North America, its principles align with ISO and DIN standards, facilitating international compatibility.
Engineering Tip: Always verify that tooling complies with applicable industry standards, particularly in aerospace, medical, and automotive sectors where certification is critical.
Conclusion
Reaming remains a cornerstone process in precision manufacturing, offering unmatched dimensional accuracy and surface quality for critical applications. By understanding the full spectrum of reamer types, tool design, operational best practices, and industry standards, engineers can optimize both performance and cost-efficiency.
Whether enhancing bore finishes in aircraft components or achieving press-fit tolerances in automotive assemblies, reamers—backed by proper lubrication, setup, and compliance—ensure that your manufacturing process delivers excellence hole after hole.
